Stream Host Docker

Introduction

This guide covers the XMPro Stream Host Docker image available from version 4.4.19 onwards. The latest Stream Host images have been redesigned for improved security and usability.

Prerequisites

Software Requirements

A container runtime such as Docker Desktop.

Hardware Requirements

Component Small Medium Large
Stream Host 1 CPU, 4 GB RAM 2 CPU, 8GB RAM 4 CPU, 16GB RAM
Note

Actual resource requirements depend on your specific data streams. Monitor performance and adjust resources accordingly.

Configuration

Essential Environment Variables

Key Required Description
xm__xmpro__Gateway__Id Optional Unique GUID identifier for this Stream Host instance.
Default: A new GUID
xm__xmpro__Gateway__Name Optional Display name in Data Stream Designer.
Default: "[Image-Version]-[Gateway Id]", e.g. "alpine3.21-python3.12-3bd462d4-4f1f-4cda-b6c5-d02f986beb6f"
xm__xmpro__Gateway__CollectionId Required ID of your Collection
(available in Data Stream Designer)
xm__xmpro__Gateway__Secret Required Secret key of your Collection
(available in Data Stream Designer)
xm__xmpro__Gateway__ServerUrl Required The server URL for where Data Stream Designer is hosted. E.g. "https://dsserver/datastreamdesigner/".

Please note that this URL needs to end in a forward slash.
xm__xmpro__Gateway__Rank Optional An integer, by default is "0".
See Stream Host Rank for further details.

These settings can be found in Data Stream Designer:

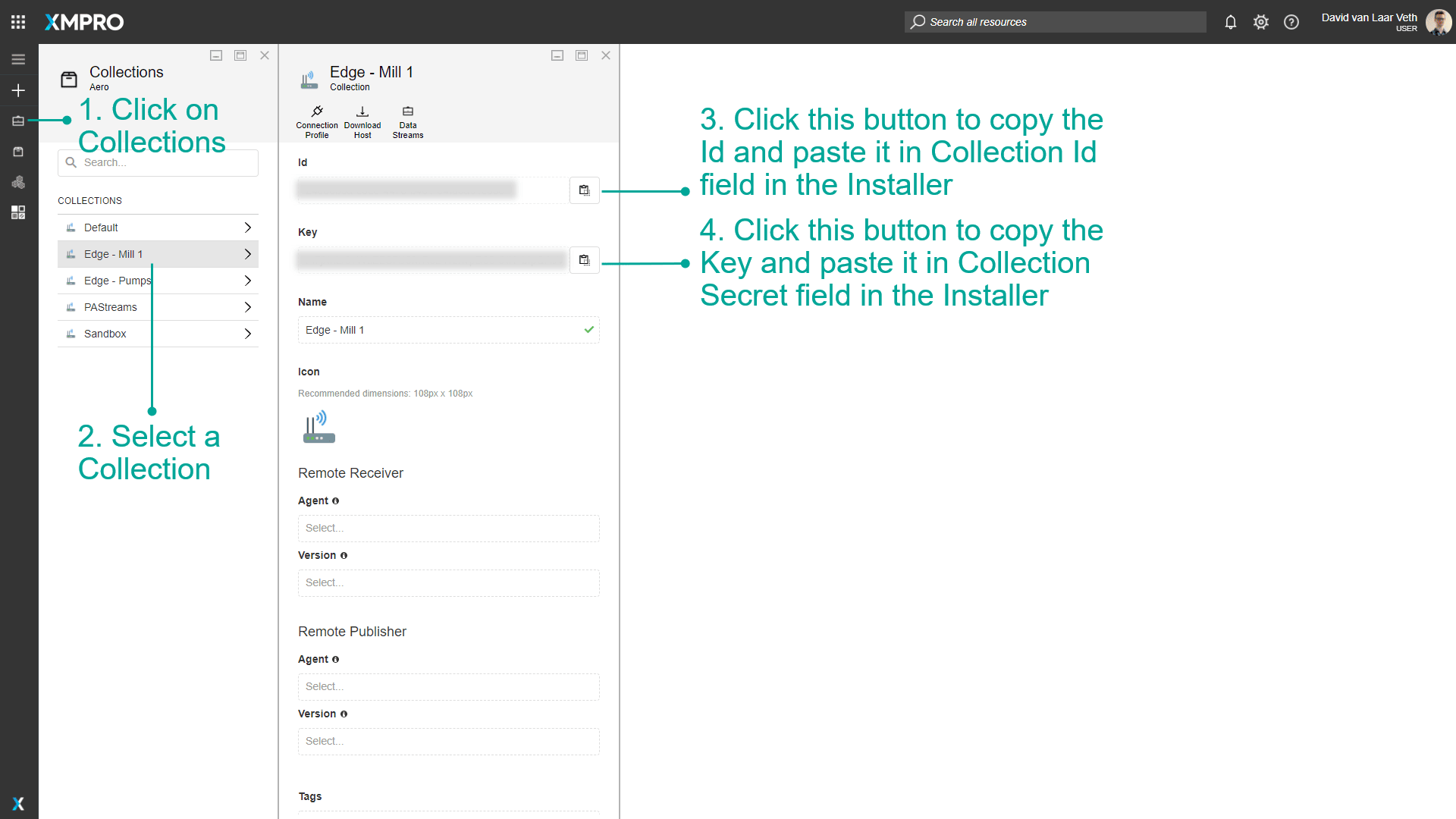

Fig 1: Collection details in Data Stream Designer

Docker Repository

Below is the XMPro Docker Stream Host repository.

xmpro.azurecr.io/stream-host

Image Variants

Version Tagging

All images are tagged with their version number. For example:

xmpro.azurecr.io/stream-host:4.4.19

The latest tag points to the most recent release:

xmpro.azurecr.io/stream-host:latest
Warning

Using the latest tag caches the image locally. For guaranteed latest version, specify the exact version number or re-pull the image.

Available Variants

A Stream Host running a Data Stream must provide the capabilities to run each Agents in the Data Stream. Choose your image depending on the capabilities that are required.

Image Name Description
xmpro.azurecr.io/stream-host:4.4.19-bookworm-slim Debian (Default)
xmpro.azurecr.io/stream-host:4.4.19-bookworm-slim-python3.12 Debian with Python
xmpro.azurecr.io/stream-host:4.4.19-alpine3.21 Alpine

Choosing the Right Image

  • Alpine-based images offer a smaller footprint, ideal for environments where size matters
  • Debian-based images (Bookworm Slim) provide more comprehensive tools and libraries for general use
  • Python-enabled images come with Python pre-installed for running Python-based Agents and Connectors

Python Package Installation

For Python-enabled images, you can install packages using:

Either a requirements.txt file,

pandas==2.1.4
numpy==1.26.3

Or the SH_PIP_MODULES environment variable:

SH_PIP_MODULES = pandas==2.1.4 numpy==1.26.3

Requirements.txt Location

Specify the location of your requirements.txt file using the PIP_REQUIREMENTS_PATH environment variable:

 # Powershell and Bash Terminal
 -v "<path_to_your_solution>:/opt/"
 -e PIP_REQUIREMENTS_PATH="/opt"

 # Docker compose
 - PIP_REQUIREMENTS_PATH=/opt
volumes:
 - "<path_to_your_solution>:/opt/"
Note

If not specified, the system will look for requirements.txt in the default path /app.

Installing System Dependencies

To install additional system packages (APK/APT), you can install it using environment variables:

ADDITIONAL_INSTALLS=git

Deployment

Docker

Replace <values> with your actual configuration settings.

PowerShell

docker run `
  --name stream-host `
  --restart on-failure `
  -e "XM__XMPRO__GATEWAY__COLLECTIONID=<Collection ID>" `
  -e "XM__XMPRO__GATEWAY__SECRET=<Collection Secret>" `
  -e "XM__XMPRO__GATEWAY__SERVERURL=<Server URL>" `
  xmpro.azurecr.io/stream-host:latest

With optional environment variables:

docker run `
--name stream-host `
--restart on-failure `
--pull always `
-e "XM__XMPRO__GATEWAY__COLLECTIONID=<Collection ID>" `
-e "XM__XMPRO__GATEWAY__SECRET=<Collection Secret>" `
-e "XM__XMPRO__GATEWAY__SERVERURL=<Server URL>" `
-e "XM__XMPRO__GATEWAY__ID=<Stream Host Id>" `
-e "XM__XMPRO__GATEWAY__NAME=<Stream Host Name>" `
-e "XM__XMPRO__GATEWAY__RANK=<Stream Host Rank>" `
-e "SH_PIP_MODULES=pandas scikit-learn numpy" `
-v "<path_to_your_solution>:/opt/" `
-e "PIP_REQUIREMENTS_PATH=/opt" `
-e "ADDITIONAL_INSTALLS=git" `
xmpro.azurecr.io/stream-host:latest
Note

Remove optional variables that are NOT needed.

Bash/Terminal

docker run \
--name stream-host \
--restart on-failure \
-e "XM__XMPRO__GATEWAY__COLLECTIONID=<Collection ID>" \
-e "XM__XMPRO__GATEWAY__SECRET=<Collection Secret>" \
-e "XM__XMPRO__GATEWAY__SERVERURL=<Server URL>" \
xmpro.azurecr.io/stream-host:latest

With optional environment variables

MSYS_NO_PATHCONV=1 docker run \
--name stream-host \
--restart on-failure \
--pull always \
-e "XM__XMPRO__GATEWAY__COLLECTIONID=<Collection ID>" \
-e "XM__XMPRO__GATEWAY__SECRET=<Collection Secret>" \
-e "XM__XMPRO__GATEWAY__SERVERURL=<Server URL>" \
-e "XM__XMPRO__GATEWAY__ID=<Stream Host Id>" \
-e "XM__XMPRO__GATEWAY__NAME=<Stream Host Name>" \
-e "XM__XMPRO__GATEWAY__RANK=<Stream Host Rank>" \
-e "SH_PIP_MODULES=pandas scikit-learn numpy" \
-v "<path_to_your_solution>:/opt/" \
-e "PIP_REQUIREMENTS_PATH=/opt" \
-e "ADDITIONAL_INSTALLS=git" \
xmpro.azurecr.io/stream-host:latest
Note

Remove optional variables that are NOT needed.

Docker Compose

Create a compose.yaml file in your working directory:

services:
  stream-host:
    image: xmpro.azurecr.io/stream-host:latest
    pull_policy: always
    container_name: 'stream-host'
    environment:
      - XM__XMPRO__GATEWAY__COLLECTIONID=<Collection ID>
      - XM__XMPRO__GATEWAY__SECRET=<Collection Secret>
      - XM__XMPRO__GATEWAY__SERVERURL=<Server URL>
    restart: on-failure

With optional environment variables

services:
  stream-host:
    image: xmpro.azurecr.io/stream-host:latest
    pull_policy: always
    container_name: 'stream-host'
    environment:
      - XM__XMPRO__GATEWAY__COLLECTIONID=<Collection ID>
      - XM__XMPRO__GATEWAY__SECRET=<Collection Secret>
      - XM__XMPRO__GATEWAY__SERVERURL=<Server URL>
      # Optional: Uncomment if needed
      # - XM__XMPRO__GATEWAY__ID=<Stream Host Id>
      # - XM__XMPRO__GATEWAY__NAME=<Stream Host Name>
      # - XM__XMPRO__GATEWAY__RANK=<Stream Host Rank>
      # - SH_PIP_MODULES=pandas scikit-learn numpy
      # - PIP_REQUIREMENTS_PATH=/opt
      # - ADDITIONAL_INSTALLS=git
    # volumes:
    # - "<path_to_your_solution>:/opt/"
    restart: on-failure

Replace <values> with your actual configuration settings.

Managing Your Docker Compose Container

Start the Stream Host:

docker-compose up -d stream-host

Stop the Stream Host:

docker-compose down
Note

For more information on Docker Compose, see the Docker Compose Overview.

Your Stream Host installation is now complete.
