Circular Gauge

This Block allows you to display data in the format of a Circular Gauge. The Circular Gauge includes a circle to indicate a single value or multiple values. Circular Gauges are useful for displaying and visualizing numeric values within a certain range.

Circular Gauge Properties

Appearance

Common Properties

The Circular Gauge has the option to change its visibility.

See the Common Properties article for more details on common appearance properties.

Options that are specific to Circular Gauges include the ability to change the title, font color, tick interval, and the style of the primary and sub-values.

Title

This is the text that shows on top of the Circular Gauge.

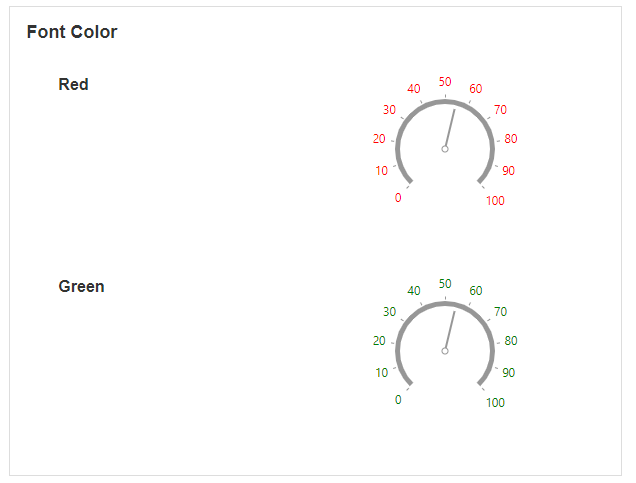

Font Color

This changes the color of the text above the Circular Gauge.

Font color configuration showing text color options above the circular gauge

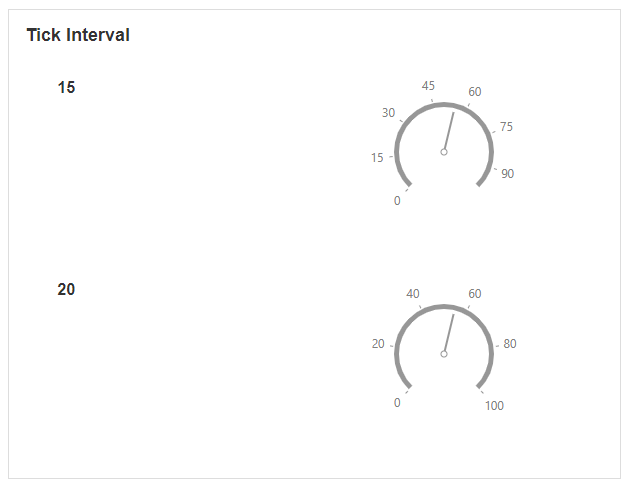

Tick Interval

This determines the distance between ticks on the outer circle of the Circular Gauge.

Tick interval preview showing distance between ticks on the gauge outer circle

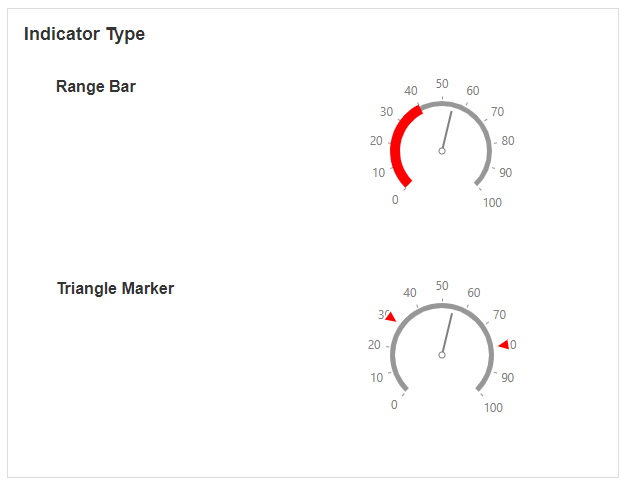

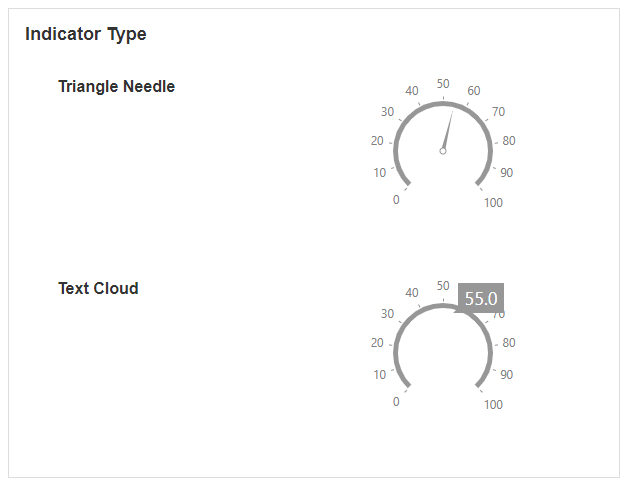

Primary Value Indicator Type

This determines the style of the primary indicator showing on the Circular Gauge.

This determines the shape of the marker that points to the value on the Circular Gauge. Options include a rectangle needle, triangle needle, two-color needle, range bar, triangle marker, and text cloud.

Primary value indicator types including needle, marker, and text cloud options

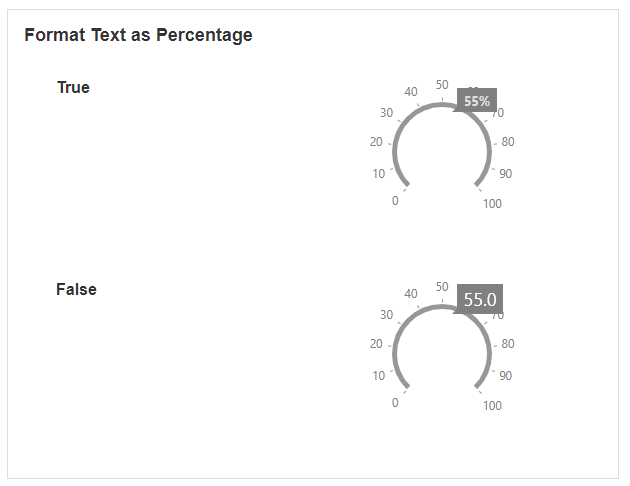

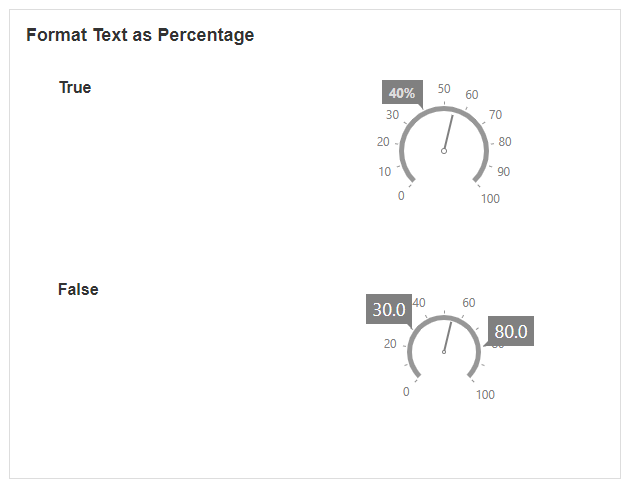

Primary Value Format Text as Percentage

This is only available if the indicator type is a text cloud. Enabling this will show the text on the screen as a percentage.

Text cloud indicator displaying value as percentage format

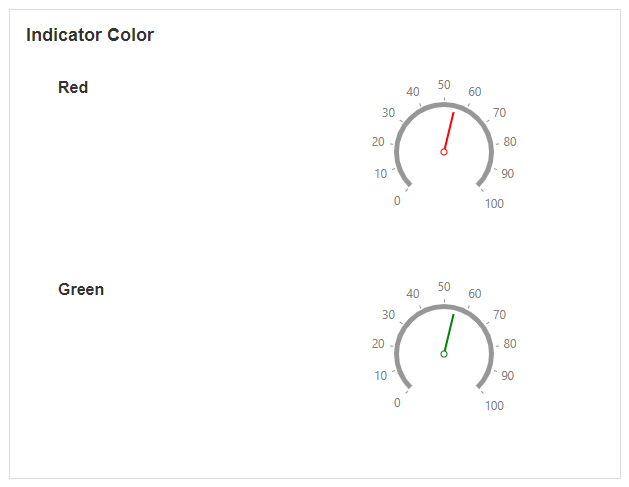

Primary Value Indicator Color

This determines the color of the indicator.

Primary value indicator color selection interface

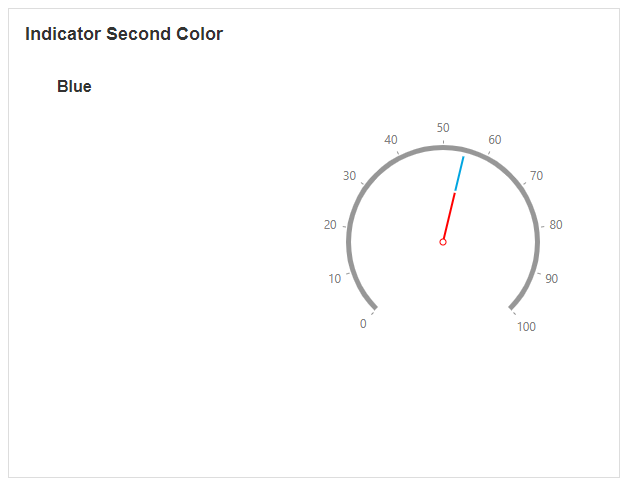

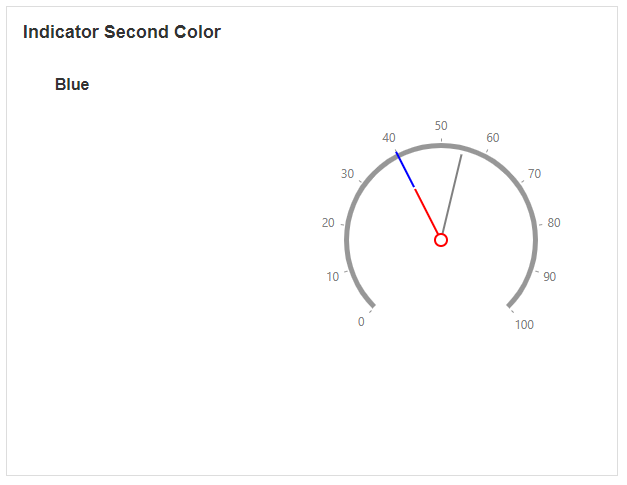

Primary Value Indicator second color

This option is only available if the indicator type is a two-color needle. It determines the color of the second needle.

Two-color needle showing second color configuration option

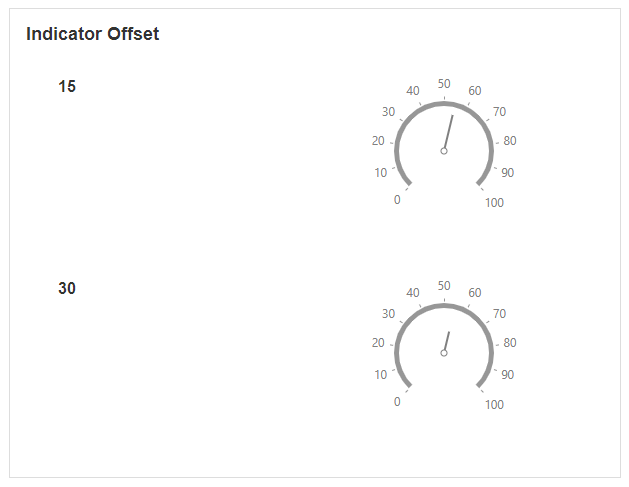

Primary Value Indicator offset

This determines how far away the needle or marker is when pointing to the value.

Primary value indicator offset adjustment showing needle distance from value

Sub Value Indicator Type

This determines the style of the sub-values showing on the Circular Gauge. The indicator refers to the shape of the marker that points to the value on the gauge.

Sub-value indicator type options for secondary gauge markers

Sub Value Format Text as Percentage

This is only available if the indicator type for the sub-value is a text cloud. Enabling this will show the text on the screen as a percentage.

Sub-value text cloud showing percentage format display option

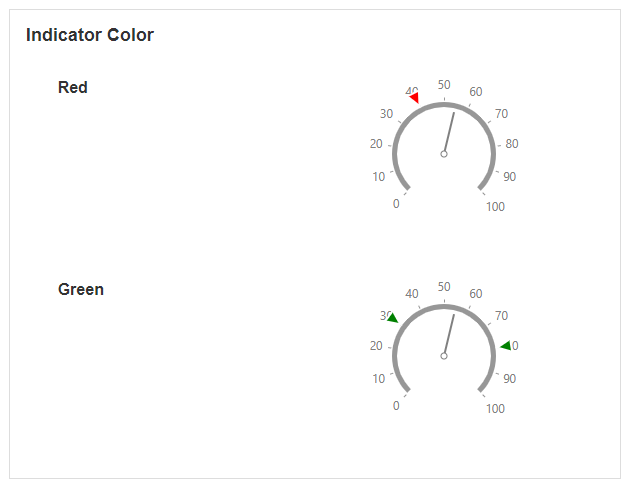

Sub Value Indicator Color

This determines the color of the sub-values.

Sub-value indicator color configuration interface

Sub Value Indicator Second Color

This option is only available if the sub-value indicator type is a two-color needle. It determines the color of the second needle.

Sub-value two-color needle second color selection

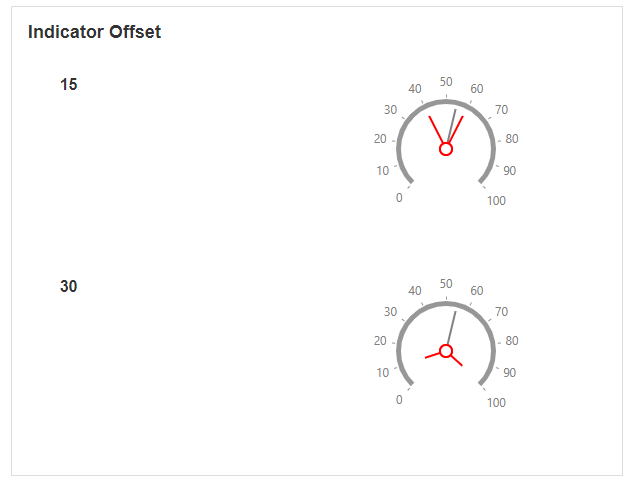

Sub Value Indicator Offset

This determines how far away the needle or marker is when pointing to the sub-value.

Sub-value indicator offset showing marker distance adjustment

Behavior

Common Properties

The disabled property is common to most Blocks;

See the Common Properties article for more details on common behavior properties.

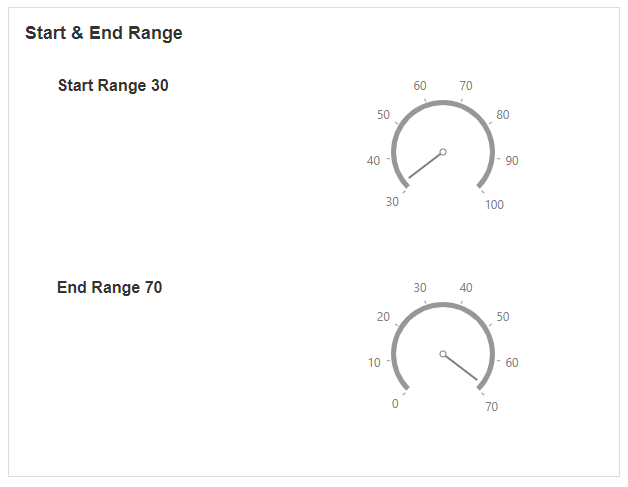

Start Range and End Range

The start and end range define the boundaries of where the values of the Circular Gauge should start and end.

Start and end range configuration defining gauge value boundaries

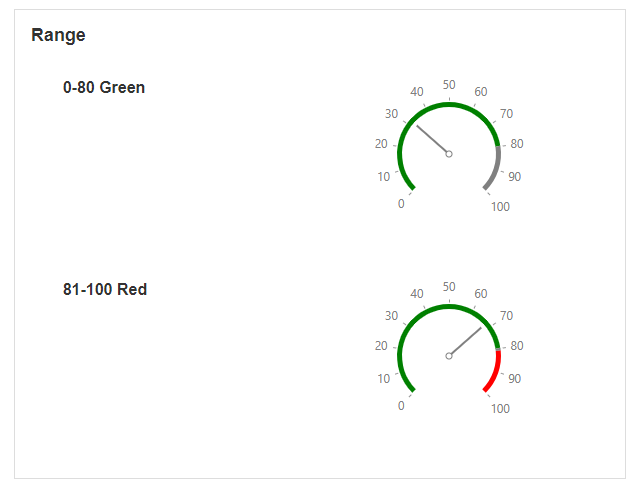

Range

The range allows you to change the color of different ranges on the gauge.

Range color configuration showing different colored sections on the gauge

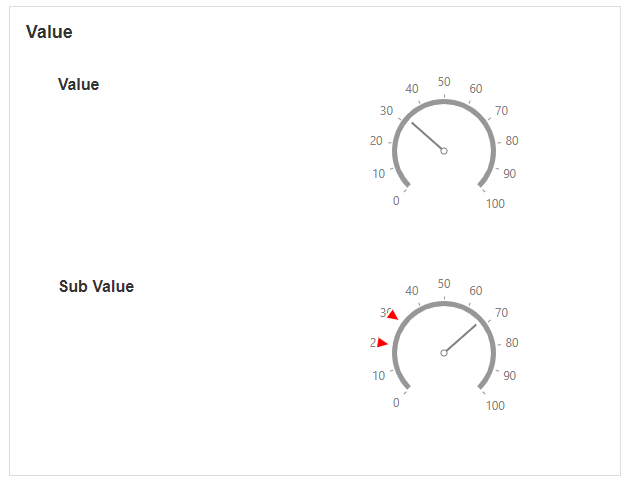

Value

You can show but a single value on the Circular Gauge, as well as sub-values.

Circular gauge displaying primary value and sub-values
